Ready-Made Aluminium Armature

£34.99
SKU
RMAA-1401

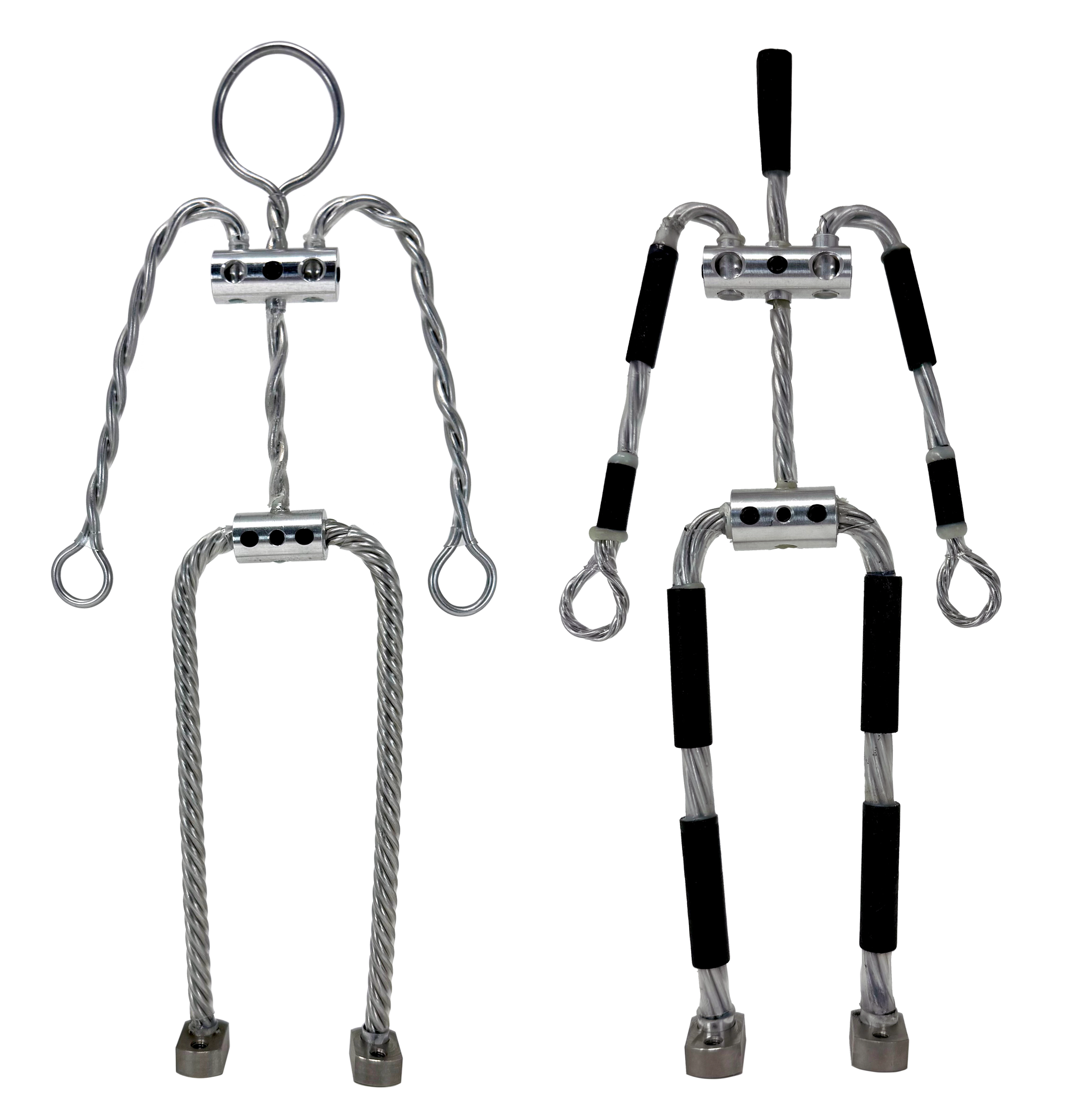

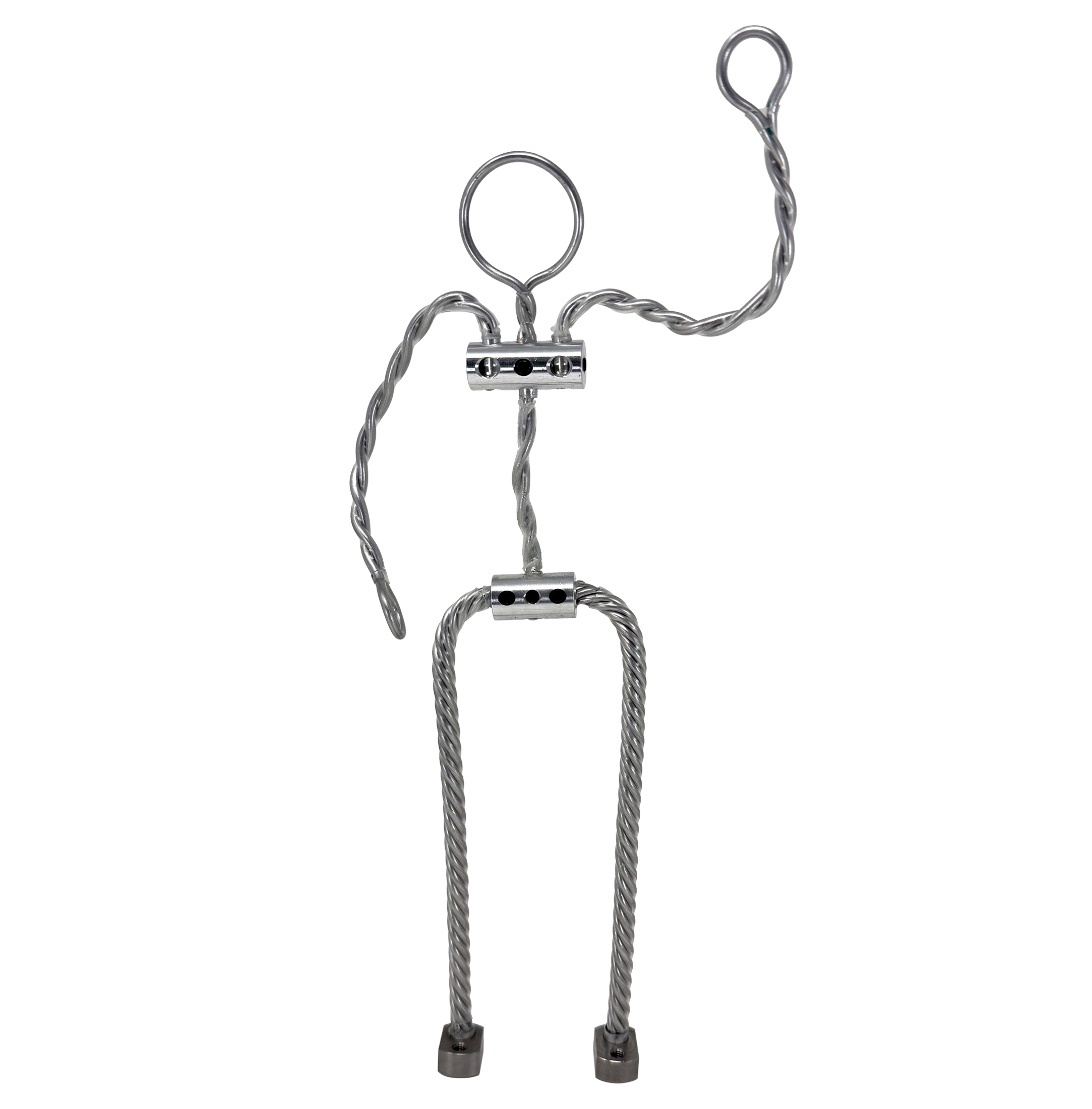

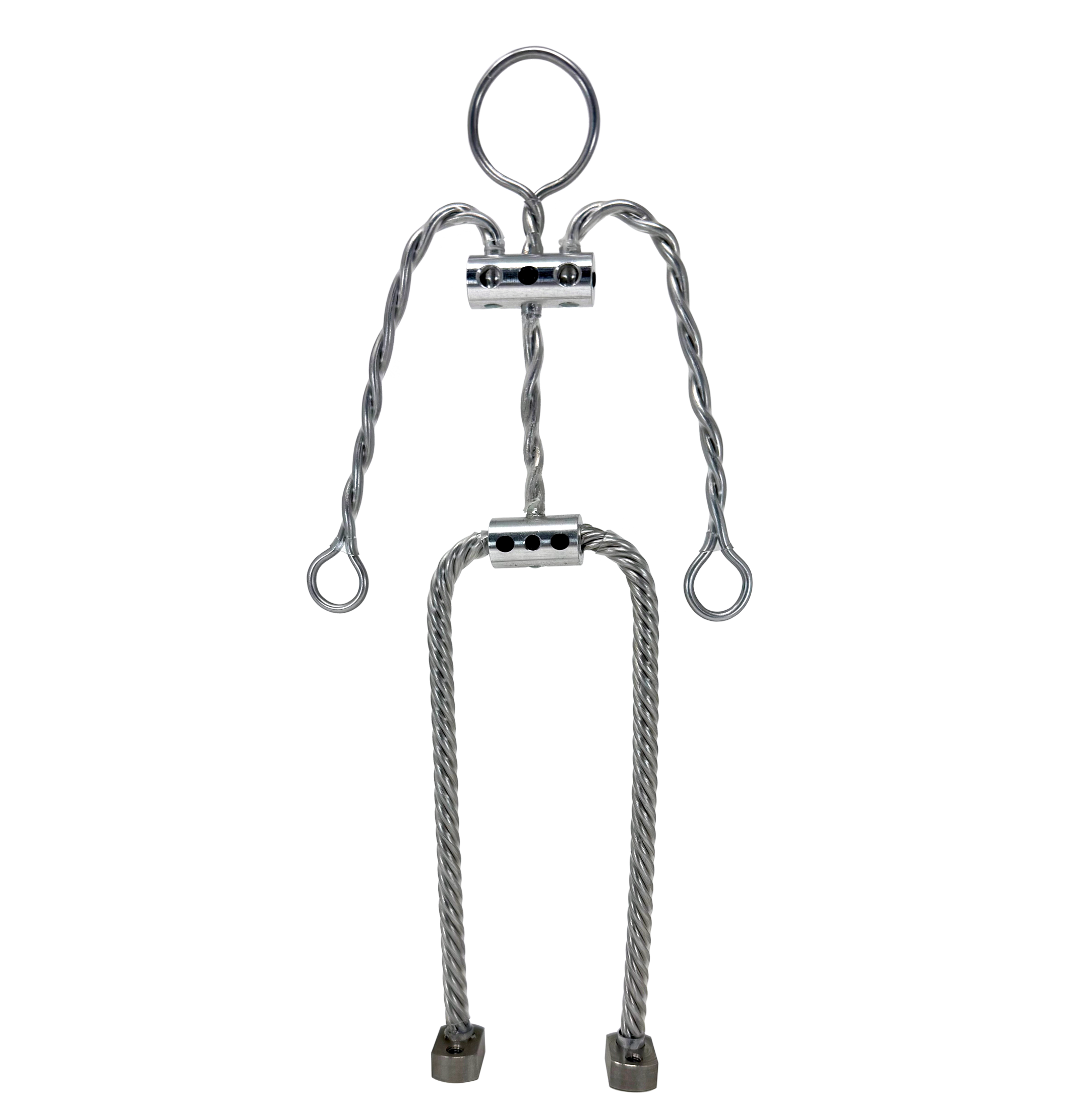

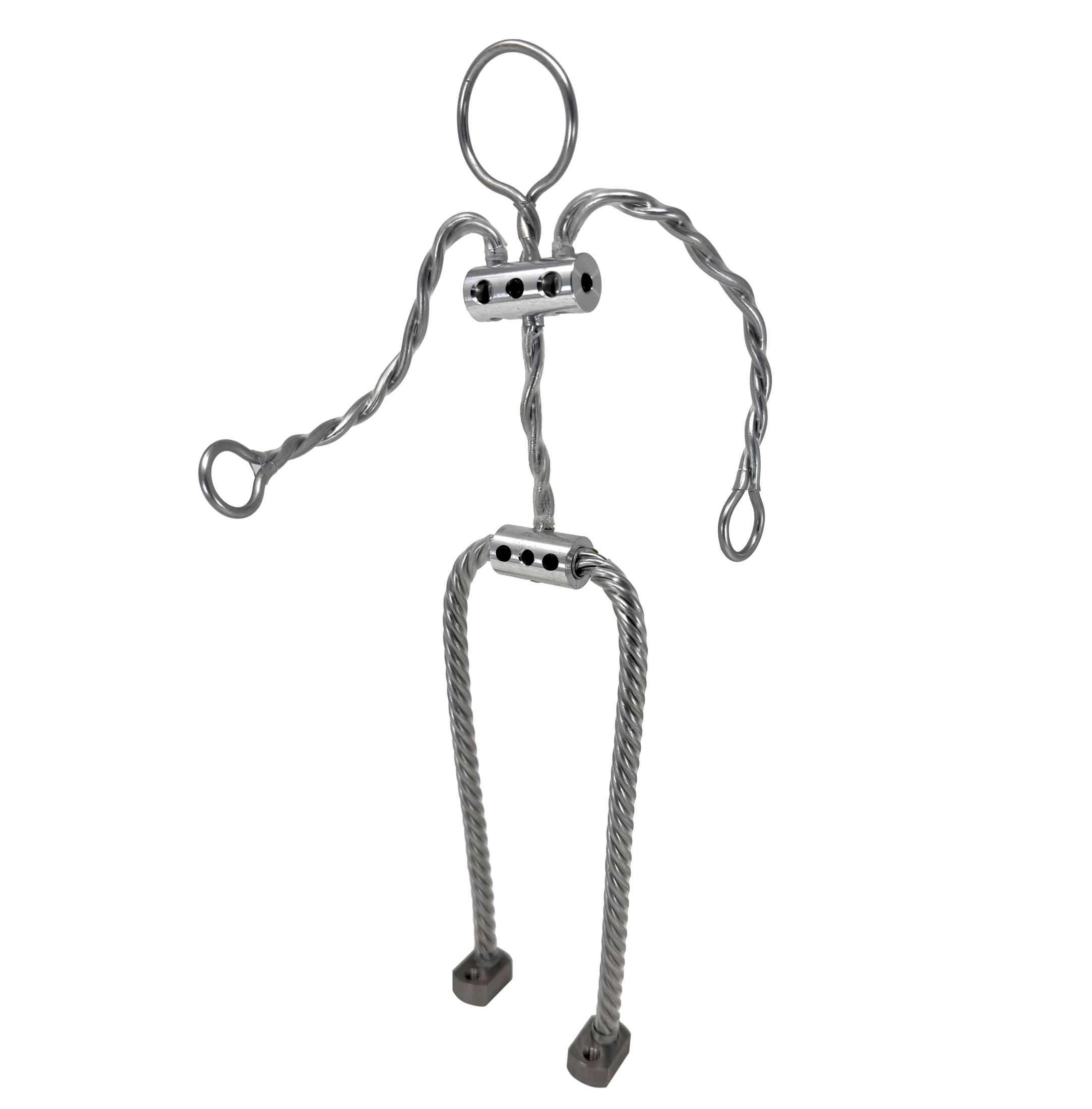

The Aluminium Armature™ fully assembled and ready to animate. This is the ideal choice for those starting out in animation. The robust design of the Aluminium Armature, coupled with the fact that the wire are replaceable makes it an excellent choice for those starting out in animation. Detailed information can be found further down this page.

The Ready-made Aluminium Armature™ is a simplified version of its big brother, the AliExtra. It is an excellent choice for those starting out in animation and represents exceptional value for money. Unlike the kit version of this armature, the assembled aluminum armature includes heat shrink on twisted wires of the legs, offering additional durability. It also features easily replaceable wires so that when one of your character's limbs breaks you can simply slot a new one in place. It also includes threaded holes in the feet which can be used with our M4 tie-down rods as well as our magnetic tie-down systems. These are sold separtely and are available here.

Despite its price this armature kit is made from the highest quality materials. We only use the best quality animation wire, ensuring that you get an armature which is not only a pleasure to animate but if treated correctly, is also durable and long lasting. Like with all our products this armature kit has been designed by our experienced and skilled team. We manufacture all our products with precision, quality and value for money in mind.

The Ready-made Aluminium Armature Includes:

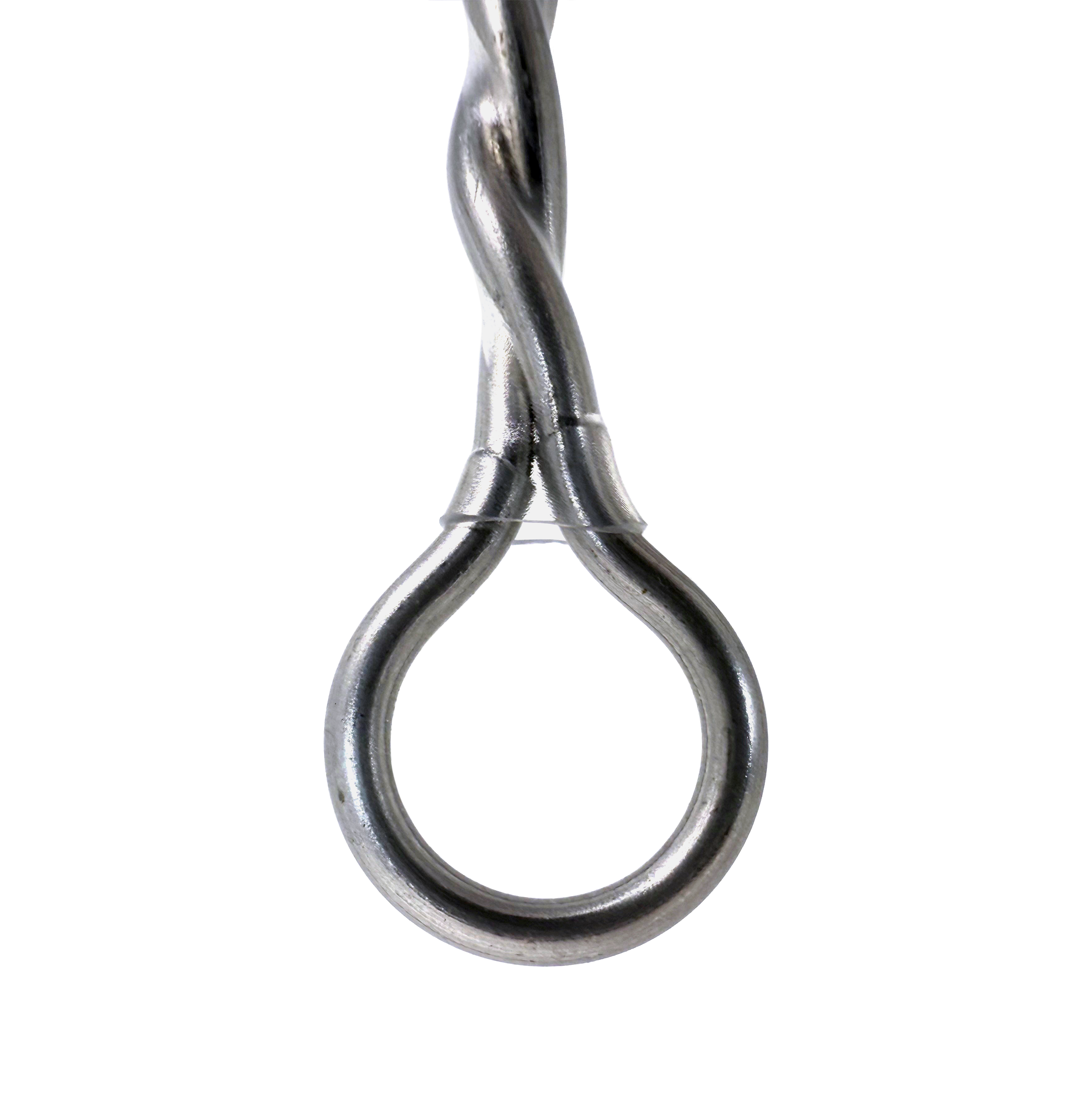

 - Five strands of 2mm Aluminium Animation wire twisted together and covered in heat shrink for the legs

 - Two strands of 2mm  Aluminium Animation wire twisted together for the spine and arms

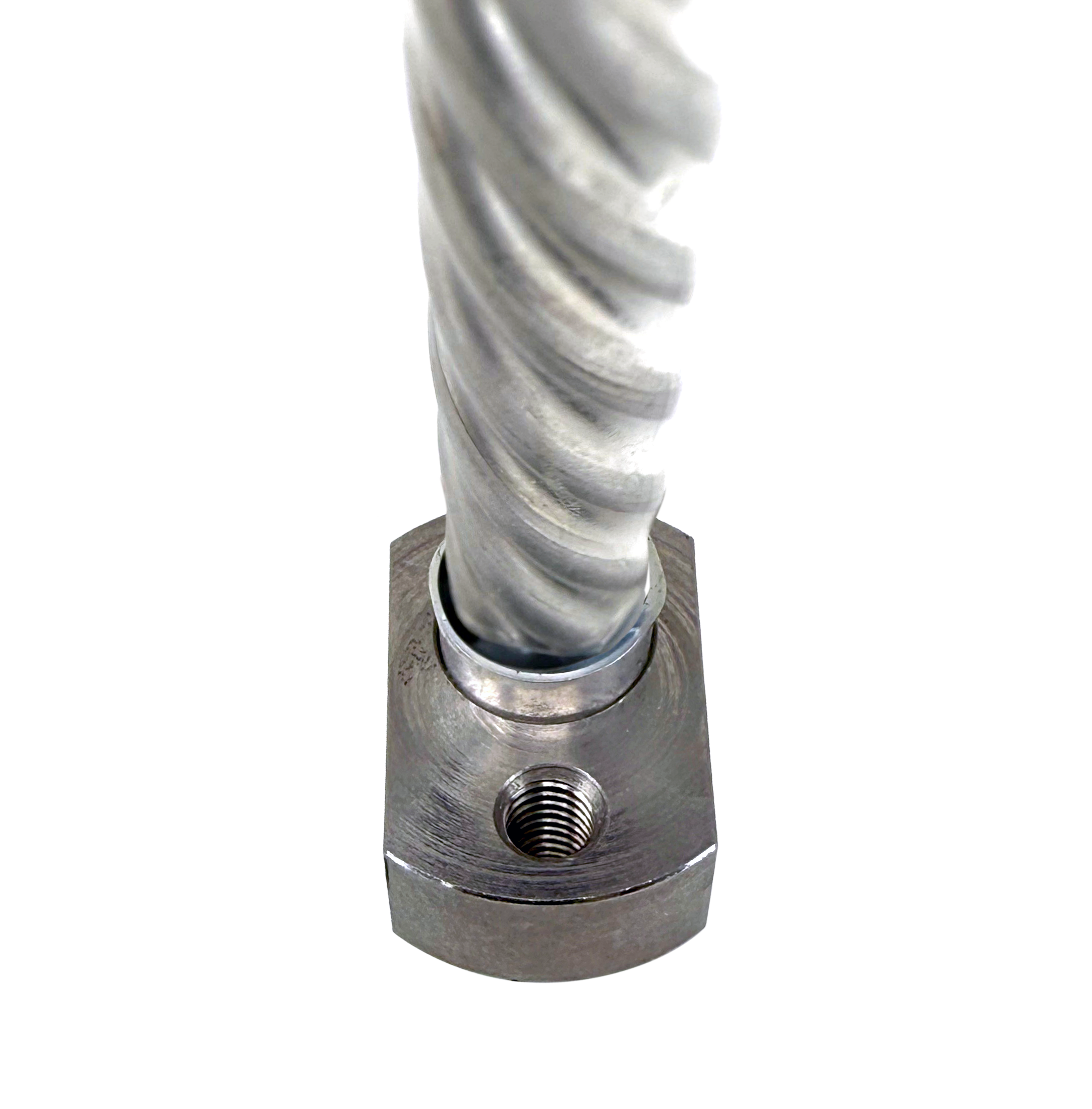

 - M4 threaded holes in the foot components for tie-down

 - Feet are compatible with our magnetic tie-down systems.

 - Hex key for removing and replacing limbs





Armature specification comparison table

  Aluminium Armature - Animation Supplies
AliExtra Armature - Aluminium Supplies
Standard Armature - Animation Supplies
Professional Armature - Animation Supplies
ProPlus Armature - Animation Supplies

 Aluminium
AliExtra
Standard
Professional
ProPlus
Price
£29.99
£44.99
£79.99
£114.99
£149.99
Joint dimensions
N/A
N/A
24 x 13 x 9mm
19.5 x 10 x 7.8mm
19.5 x 10 x 7.8mm
Number of joints
N/A
N/A
12
12
16 (incl. wrists)
Ball size
N/A
N/A
8mm
6mm
6mm
Rod/Tube size
6.4mm & 4.8mm tubing
8.5mm & 6.4mm tubing
M4 (4mm)
M3 (3mm)
M3 (3mm)
Height range* (*Additional rods required for characters taller than 240mm)
135 - 350mm
150 - 425mm
140 - 425mm
120 - 425mm
120 - 425mm
Hard wearing
stainless steel

compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
Standard tie-down
(included)

compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
Magnetic tie-down
(optional)

compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
Toe plate (for better
walk cycles)

compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
Fixed joints (for
realistic movement)

compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
Replaceable hands
compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
compare animation supplies armature specifications
Countersunk plates
compare animation supplies armature specifications
compare animation supplies armature specifications
Ball jointed wrists
compare animation supplies armature specifications
Fully articulated
shoulder joints

compare animation supplies armature specifications

compare animation supplies armature specifications
Increased spinal
movement

compare animation supplies armature specifications

compare animation supplies armature specifications
Rigging points
compare animation supplies armature specifications
